Wooden NES

[Paul Meekin]

If that wooden SNES were any cuter, it'd friend-zone me. Kudos.

[XanXic]

If that wooden SNES were any cuter, it'd friend-zone me. Kudos.

Ah, that made me sad. You're good enough for that NES case don't loose your confidence man.

[jimlab7]

If that wooden SNES were any cuter, it'd friend-zone me. Kudos.

Ty ^^ want to add the power button were the original NES one is
and even found what I want but just not sure if it will work

http://www.adafruit.com/products/1442#Description

It says

A switch is a switch, and an LED is an LED, but this LED illuminated button is a lovely combination of both! It's a medium sized button, large enough to press easily but not too big that it gets in the way of your project panel. It has a built in LED that can be controlled separately from the switch action - either to indicate or just to look good.

The body is a black plastic with the LED built inside. There are two contacts for the button and two contacts for the LED, one marked + and one -. The forward voltage of the LED is about 2.2V so connect a 220 to 1000 ohm resistor in series just as you would with any other LED to your 3V or higher power supply.

This particular button has a red body and LED and is latching on/off. The two switch contacts are either connected or disconnected. When you push the button they will switch from one to the other, like an on-off switch. The LED is separated from the button, so you can make it light up when on, light up when off, always lit, etc.


I think it will work but I'm not sure and waiting for anyone that might know to let me know

[modder420]

you should take the power ad reset buttos from a nintendo and wire it for your power button in the case

[jimlab7]

you should take the power ad reset buttos from a nintendo and wire it for your power button in the case

that might work but idk if the old NES light was led then? I would have to edit it make it closer together b/c if size dif but I'm sure I can do that eazy enough I think. Also anyone have an idea what the reset button would do?

If that wooden SNES were any cuter, it'd friend-zone me. Kudos.

and dw the NES looks good on the outside but is ugly on
the inside .... or at least it will be when i'm done with it xD

[Allen S Schoepflin]

After seeing a wooden Gameboy and Skylargray design on a NES for the ouya I got the idea to make a wooden NES for my ouya.
Now I don't know to much about dangers or things to watch out for so if you guys could give me a few pointers I would appreciate it

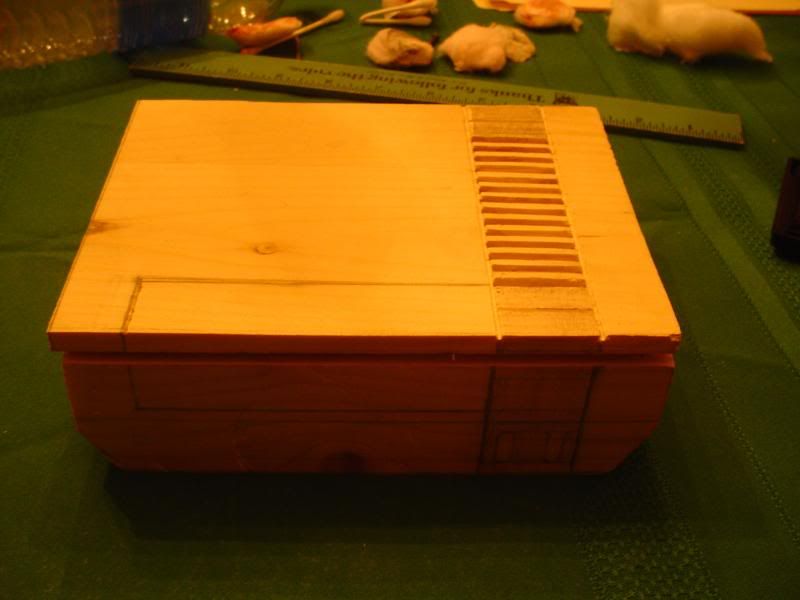

this is what I have so far its still in the rough stage.

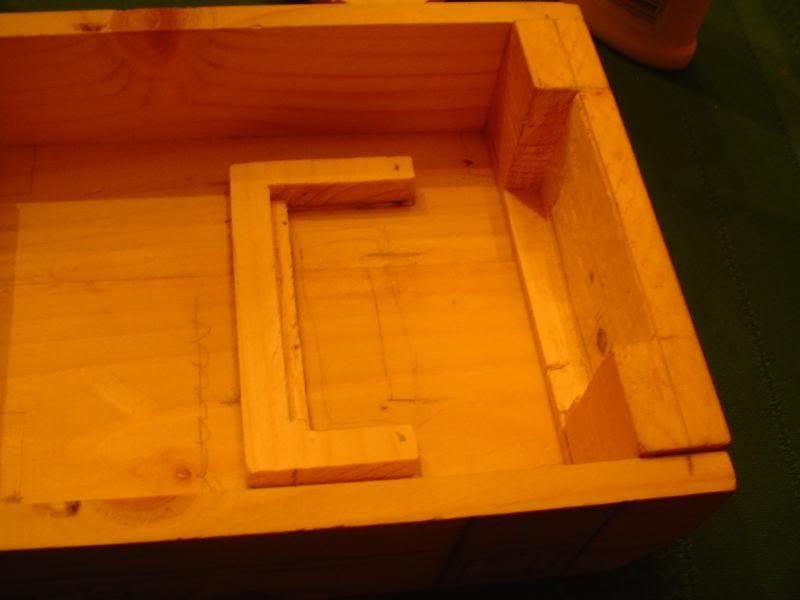

as you can see its raised about 1/8'' and I'm sure I need to put some vent holes somewhere else but where would be the best place any ideas?
I also plan to wire a red led where the light would be and wire in a power button and some usb where the controlers would be
any ideas where to get these parts ?

Would there be a way where you could make a case for me if I pay you?

[jimlab7]

Would there be a way where you could make a case for me if I pay you?

depends on what u would want and this is my very first mod i dont claim to know all of what im doing xD i started to add a usb hub to this and had it going the power part was fine but i could get it to read my data from my hhd not even in the orignal usb not until i cut the wires off did it start working again do that sucks
and now i have 2 holes in front for usbs and no working usb hub atm xD

i think ill try again cause when i got it (before i cut it up ) i tested it with a usb keyboard and wouldnt work so it might have been messed up anyways

[jimlab7]

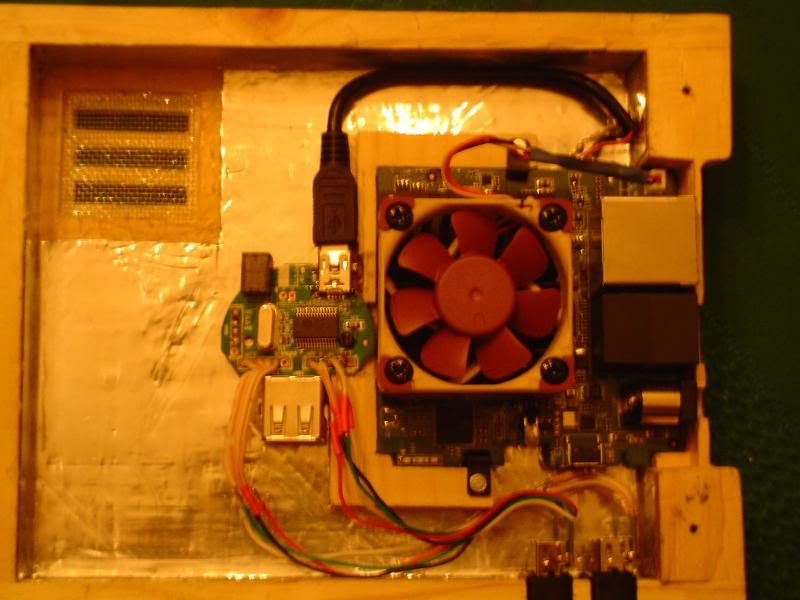

Ok After 2 usb hubs that wouldn"t work with the ouya i found one at Biglots of all places i had to add wire to them and take a usb off (it had a light on it) this is what I've came up with.

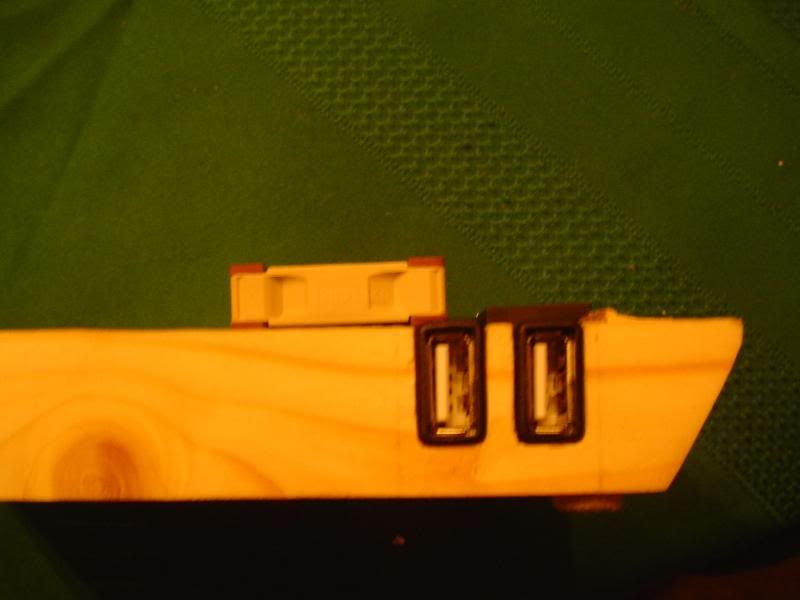

and this is how the usbs sit it the front



also as u can see I've changed the fan and will be using the stock one in the corner to push air
out I will solder it to the ouya thanks to Skylars show how

and will still need to get the power button til next update

[eeGLaDOS]

Looking great! Think you're going to be making more anytime soon?

[jimlab7]

Looking great! Think you're going to be making more anytime soon?

more on this project or more nes's
