I have been tinkering around with my CX-919/Measy U2C-D dock since I purchased them and wanted to show off my results thus far.
I wanted to add features while keeping the whole system as compact as possible. I also didn't want to block any of the connectors or ports so that I could maintain maximum flexibility and usability in the system.
The CX-919 has its own Micro SD slot and the Measy dock adds an additional full-size SD slot as well.
I would call this system 99% complete, as I'm building a custom cable that will bring power to the USB hub via the micro USB connector on the dock.
I'm using the coaxial power connector next to the micro USB connector with a 2.4-amp adapter for power. The two are hardwired in parallel so by utilizing the micro USB connector for power I can fully power the USB 2.0 Hub.
When the cable is finished the system will be considered "complete".
(I have the pieces here at home. but the "good heat shrink tubing" is at work so I'm waiting in order to make a better looking cable.)

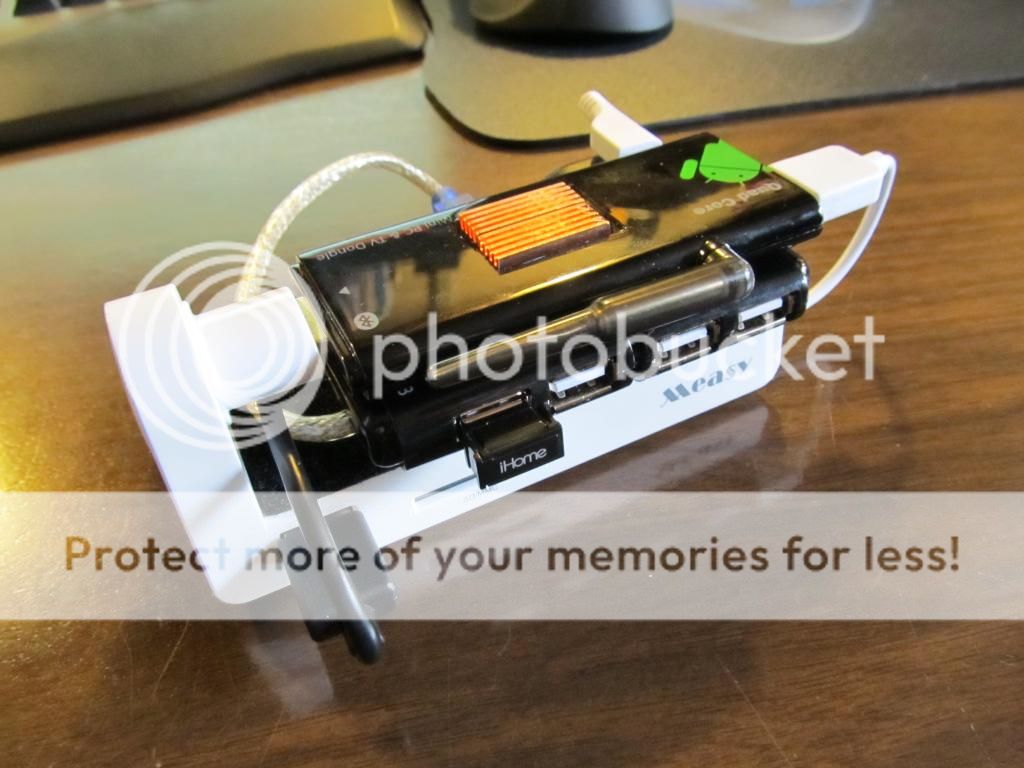

I present for your entertainment: Frankendongle
The system:
*CX-919 Android Mini PC -modified with Finless ROM and copper SOC heatsinks. (A very fast and stable runner)
*Measy U2C-D dock -modified to allow full horizontal rotation and a layer of Velcro for mounting other devices
*Belkin USB-to-Ethernet dongle -modified with Velcro to secure it to the U2C-D dock
*USB 2.0 Hub (make/model unverified -eBay purchase, but any Android-compatible hub that fits the space will do!) -modified with a longer USB cable to allow for use with this system and Velcro to secure it to the U2C-D dock

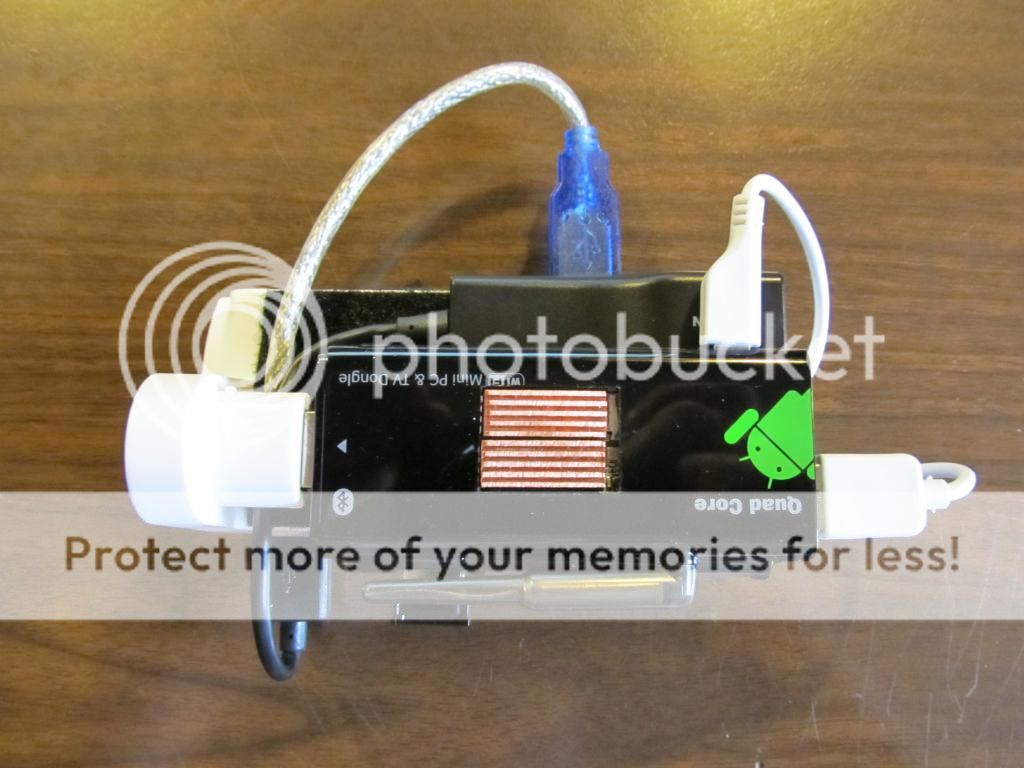

Top view showing off some of the system's footprint and copper SOC heat sinks.
Front and rear views.
I wanted one free USB port on the rear for use with a USB hard drive.
The dock acts as a USB Hub on its own, and I wanted the Hard Drive and Ethernet adapters to only go through one USB hub for better performance. It's for this reason they are plugged directly into the dock itself and not through the additional USB hub .
Currently the system is being used with an iHome wireless keyboard/mouse for which you see the receiver plugged into the 1st USB port on the hub.

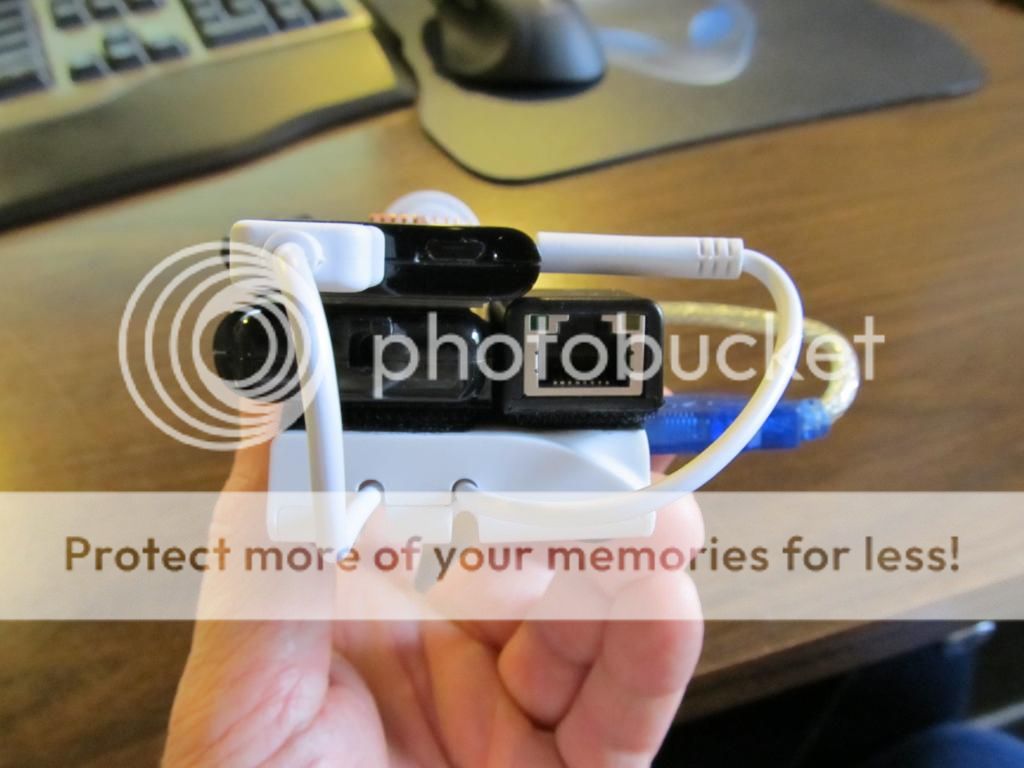

Side view.
This shows the Ethernet connector as well as the USB Hub's coaxial power port.
When completed, the custom power cable plug into this port to fully power the hub and allow for compatibility with the widest array of USB gear.
I use the system as a secondary one for surfing the web and watching videos when I don't want to fire up my big Windows PC. It also works great for retro gaming which I'm fond of.
It's certainly not the prettiest setup, but like I stated earlier it is very compact and works well for it's intended purpose.
